Description

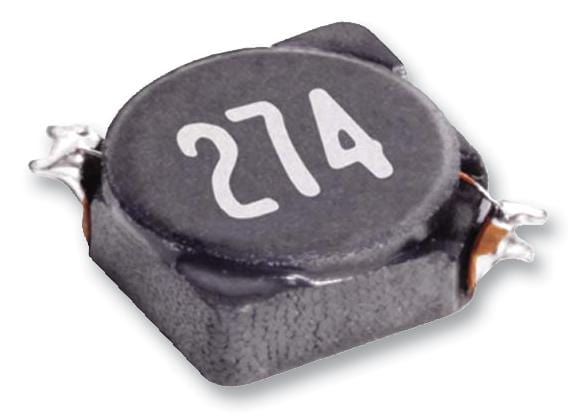

COILCRAFT - MSS5121-683MLC - Power Inductor (SMD), 68 µH, 560 mA, Shielded, 370 mA, MSS5121, 5.1mm x 5.1mm x 2.2mm
- Inductance: 68µH
- RMS Current (Irms): 560mA
- Inductor Construction: Shielded
- Saturation Current (Isat): 370mA
- Product Range: MSS5121 Series
- Power Inductor Case: 5.1mm x 5.1mm x 2.2mm
- DC Resistance Max: 1ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 18MHz
