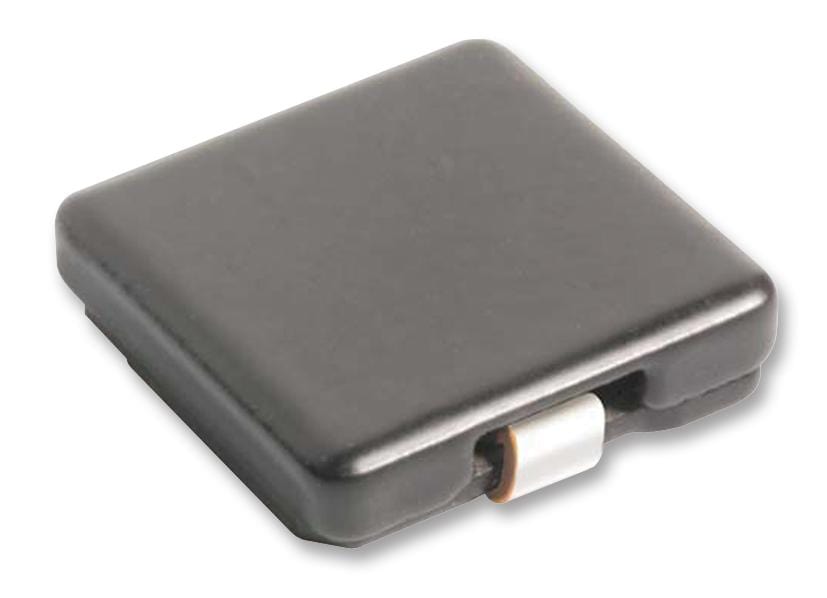

COILCRAFT - MLC1565-922MLC - Power Inductor (SMD), 9.2 µH, 10.18 A, Shielded, 7.8 A, MLC12xx, 13.8mm x 13.2mm x 6.5mm
- Inductance: 9.2µH
- RMS Current (Irms): 10.18A
- Inductor Construction: Shielded
- Saturation Current (Isat): 7.8A
- Product Range: MLC12xx Series
- Power Inductor Case: 13.8mm x 13.2mm x 6.5mm
- DC Resistance Max: 0.0106ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 25MHz
