Description

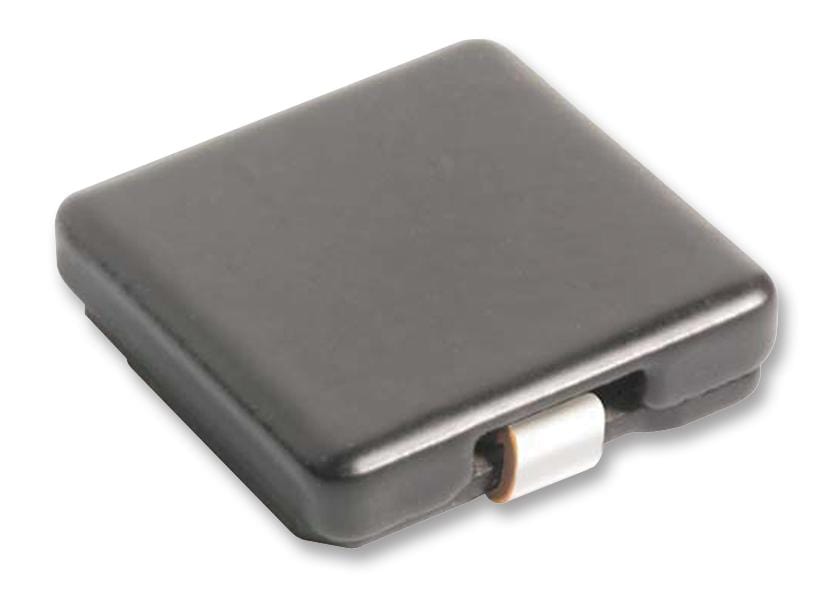

COILCRAFT - MLC1240-451MLC - Power Inductor (SMD), 450 nH, 19.8 A, Shielded, 24.9 A, MLC12xx, 11.2mm x 10.5mm x 4.1mm
- Inductance: 450nH
- RMS Current (Irms): 19.8A
- Inductor Construction: Shielded
- Saturation Current (Isat): 24.9A
- Product Range: MLC12xx Series
- Power Inductor Case: 11.2mm x 10.5mm x 4.1mm
- DC Resistance Max: 0.00191ohm
- Inductance Tolerance: ± 20%
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q200
- Self Resonant Frequency Min: 198MHz
