Description

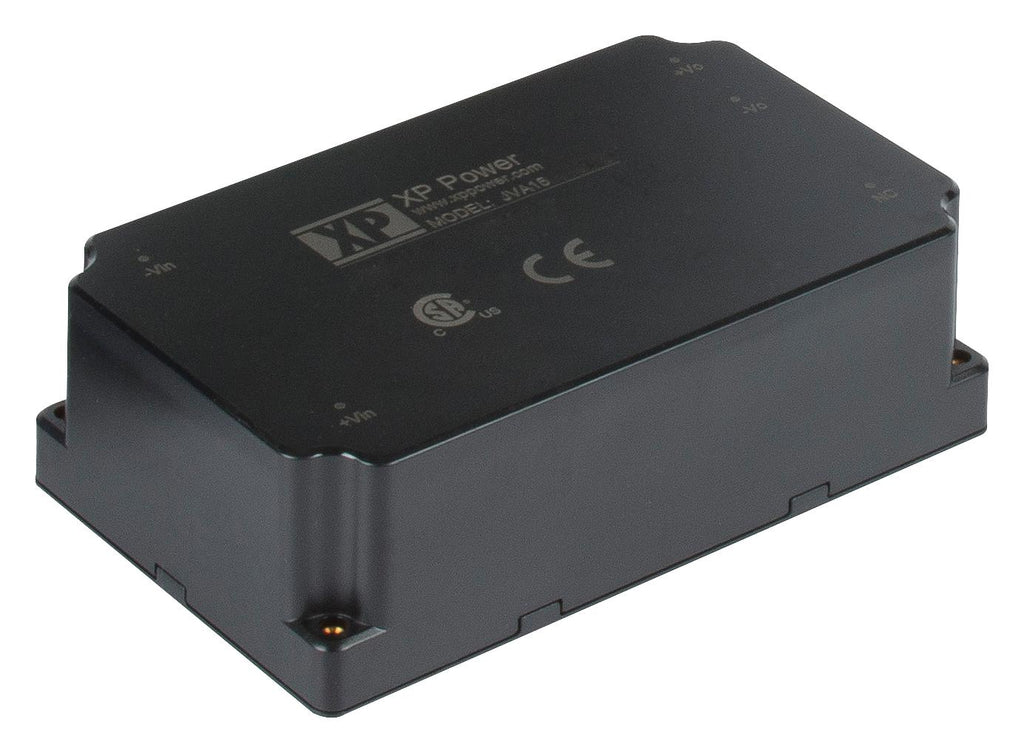

XP POWER - JVA151500S12 - Isolated Through Hole DC/DC Converter, ITE, 8:1, 15 W, 1 Output, 12 V, 1.25 A
- No. of Outputs: 1 Output
- Output Power Max: 15W
- Output Voltage - Output 1: 12V
- Output Current - Output 1: 1.25A
- Output Voltage - Output 2: -
- Output Current - Output 2: -
- Output Voltage - Output 3: -
- Output Current - Output 3: -
- Product Range: JVA15 Series
- Input Voltage DC Min: 200V
- Input Voltage DC Max: 1.5kV
- DC / DC Converter Output Type: Fixed
- DC / DC Converter Type: DIP
- DC / DC Converter Mounting: Through Hole
- Width: 75mm
- Height: 40mm
- Depth: 125mm
- SVHC: No SVHC (15-Jan-2018)
- Approvals & Standards: CSA, EN, UL
