Description

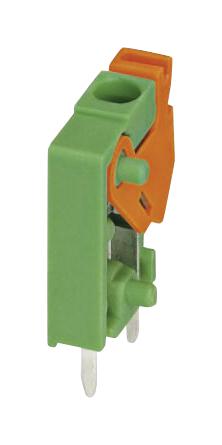

PHOENIX CONTACT - FFKDS/V-3,81 - Wire-To-Board Terminal Block, 3.81 mm, 1 Ways, 26 AWG, 18 AWG, 1 mm², Push In
- Pitch Spacing: 3.81mm
- No. of Positions: 1Ways
- Wire Size AWG Min: 26AWG
- Wire Size AWG Max: 18AWG
- Conductor Area CSA: 1mm²
- Wire Connection Method: Push In
- Rated Current: 6A
- Rated Voltage: 300V
- Block Orientation: Through Hole Vertical
- Product Range: COMBICON Series
- SVHC: No SVHC (15-Jan-2019)
