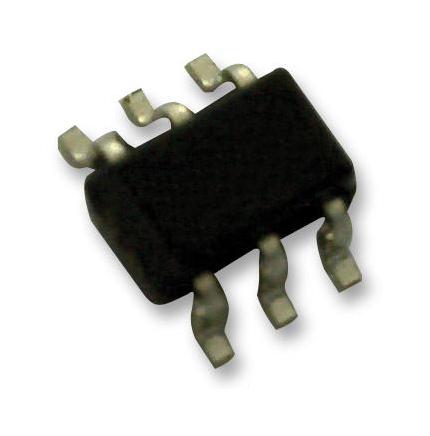

ONSEMI - FDG1024NZ - Dual MOSFET, N Channel, 20 V, 1.2 A, 0.16 ohm, SC-70, Surface Mount
- Transistor Polarity: Dual N Channel
- Continuous Drain Current Id: 1.2A
- Drain Source Voltage Vds: 20V
- On Resistance Rds(on): 0.16ohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs: 800mV
- Power Dissipation Pd: 360mW
- Transistor Case Style: SC-70
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Operating Temperature Min: -55°C
