Description

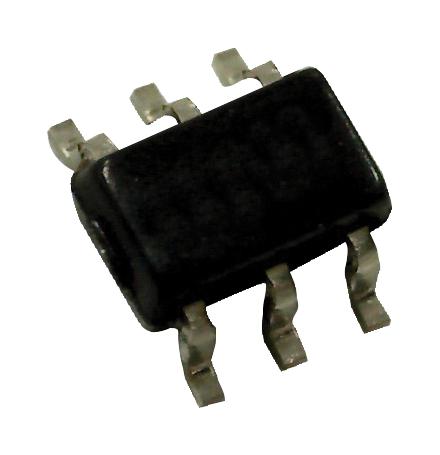

ONSEMI - FDC6329L - Integrated Load Switch, High Side, Active High, 1 Output, 8V, 2.8A, SSOT-6
- Power Load Switch Type: High Side
- Input Voltage: 8V
- Current Limit: 2.8A
- On State Resistance: 0.07ohm
- Distribution Switch Case Style: SSOT
- No. of Pins: 6Pins
- Thermal Protection: Yes
- On / Enable Input Polarity: Active High
- No. of Outputs: 1Outputs
- Operating Temperature Min: -55°C
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Internal Switch: Yes
- On Resistance Rds(on): 0.07ohm
- Operating Temperature Range: -55°C to +150°C
- Output Current Max: 2.5A
- Power Dissipation Pd: 700mW
- Protection Type: Yes
- Supply Voltage Min: 2.5V
- Termination Type: Surface Mount Device
