Description

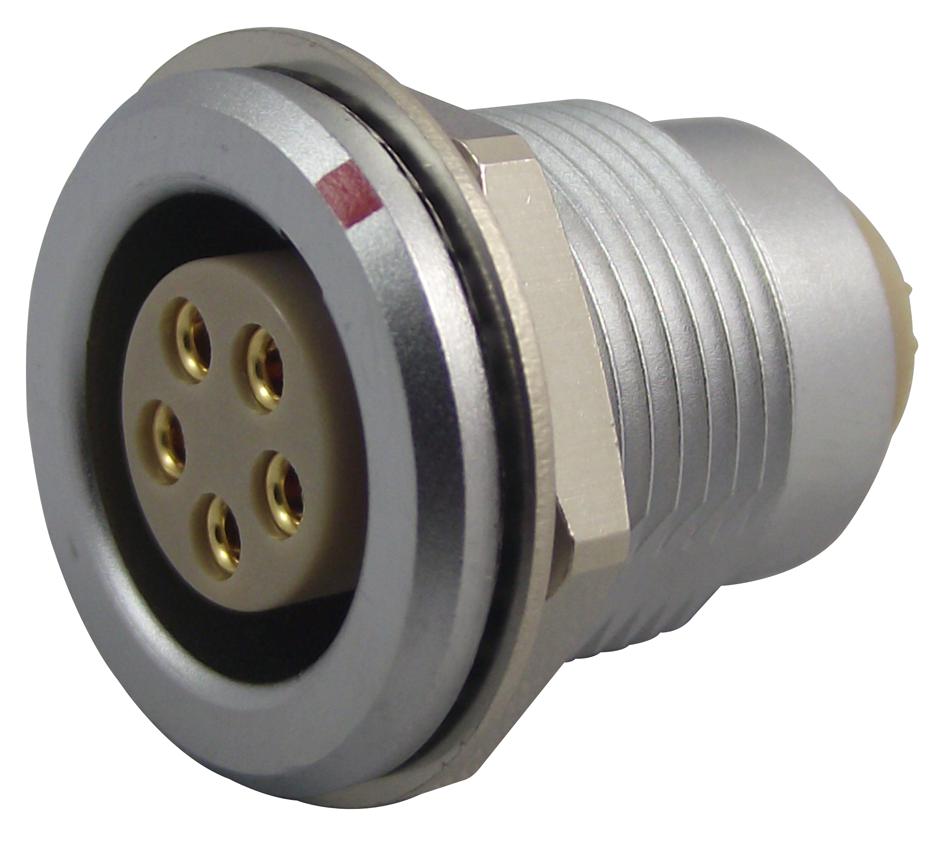

LEMO - EGG.2B.305.CLL - Circular Connector, 2B Series, Panel Mount Receptacle, 5 Contacts, Solder Socket, Push-Pull
- Product Range: 2B Series
- Circular Connector Shell Style: Panel Mount Receptacle
- No. of Contacts: 5Contacts
- Circular Contact Type: Solder Socket
- Coupling Style: Push-Pull
- Connector Body Material: Brass Body
- Connector Body Plating: Chrome
- Contact Material: Bronze
- Contact Plating: Gold
- SVHC: No SVHC (07-Jul-2017)
- Body Plating: Chrome
- Connector Mounting: Panel Mount
- Connector Shell Size: 2
- Connector Type: Circular Industrial
- Contact Gender: Socket
- Contact Plating: Gold Plated Contacts
- Contact Termination: Solder
- Contact Termination Type: Solder
- Current Rating: 14A
- Gender: Receptacle
- IP / NEMA Rating: IP50
- Insert Arrangement: 305
- No. of Mating Cycles: 5000
- Operating Temperature Max: 250°C
- Operating Temperature Min: -55°C
- Wire Size AWG Max: 20AWG
