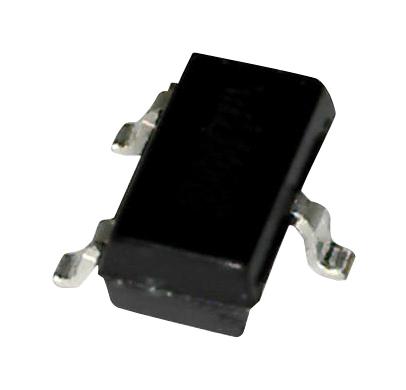

DTC114EET1G Trans, NPN, 10K, 50V, 0.1A, SC-75 ONSEMI

ONSEMISKU: DTC114EET1G Order code: 2101802

Price:
Sale price€0,31

Tax included Shipping calculated at checkout

Stock:
In stock (11370 units), ready to be shipped

Documents et téléchargements

Description

ONSEMI - DTC114EET1G - Bipolar Pre-Biased / Digital Transistor, BRT, Single NPN, 50 V, 100 mA, 10 kohm, 10 kohm, 1 (Ratio)

  • Digital Transistor Polarity: Single NPN
  • Collector Emitter Voltage V(br)ceo: 50V
  • Continuous Collector Current Ic: 100mA
  • Base Input Resistor R1: 10kohm
  • Base-Emitter Resistor R2: 10kohm
  • Resistor Ratio, R1 / R2: 1(Ratio)
  • RF Transistor Case: SOT-416
  • No. of Pins: 3 Pin
  • Product Range: -
  • Automotive Qualification Standard: AEC-Q101
  • MSL: MSL 1 - Unlimited
  • SVHC: No SVHC (27-Jun-2018)
  • DC Collector Current: 100mA
  • DC Current Gain hFE: 35hFE
  • No. of Pins: 3Pins
  • Operating Temperature Max: 150°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +150°C
  • Power Dissipation Pd: 200mW
  • Transistor Case Style: SC-75
