Description

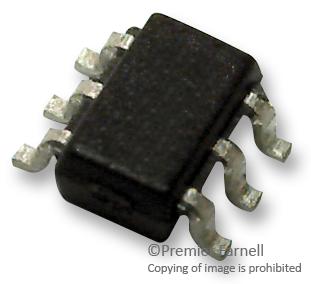

NEXPERIA - BSS138PS,115 - Dual MOSFET, N Channel, 60 V, 320 mA, 0.9 ohm, SOT-363, Surface Mount
- Transistor Polarity: Dual N Channel
- Continuous Drain Current Id: 320mA
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 0.9ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs: 1.2V
- Power Dissipation Pd: 420mW
- Transistor Case Style: SOT-363
- No. of Pins: 6Pins
- Operating Temperature Max: 150°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Continuous Drain Current Id, N Channel: 320mA
- Drain Source Voltage Vds, N Channel: 60V
- Module Configuration: Dual N Channel
- On Resistance Rds(on), N Channel: 0.9ohm
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +150°C
