Description

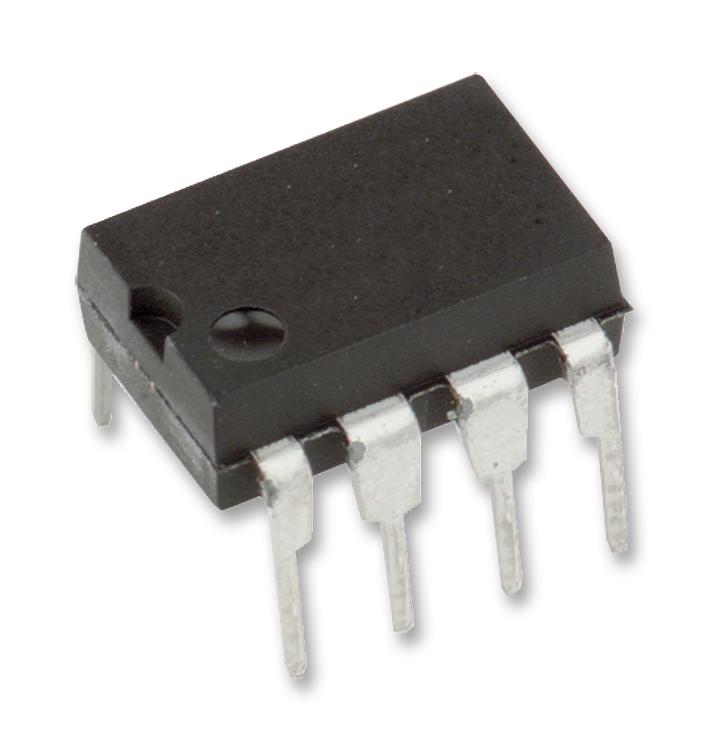

MICROCHIP - 93LC46C-I/P - EEPROM, Microwire, 1 Kbit, 128 x 8bit / 64 x 16bit, Serial Microwire, 3 MHz, DIP, 8 Pins
- Memory Size: 1Kbit
- EEPROM Memory Configuration: 128 x 8bit / 64 x 16bit
- Memory Interface Type: Serial Microwire
- Clock Frequency: 3MHz
- Memory Case Style: DIP
- No. of Pins: 8Pins
- Supply Voltage Min: 2.5V
- Supply Voltage Max: 5.5V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: 1Kbit Microwire Serial EEPROM
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Automotive Qualification Standard: AEC-Q100
- Clock Frequency Max: 3MHz
- IC Generic Number: 93LC46
- IC Interface Type: Serial Microwire
- Memory Density: 1Kbit
- Memory Type: EEPROM
- Memory Voltage Vcc: 2.5V
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage Range: 2.5V to 5.5V
