Description

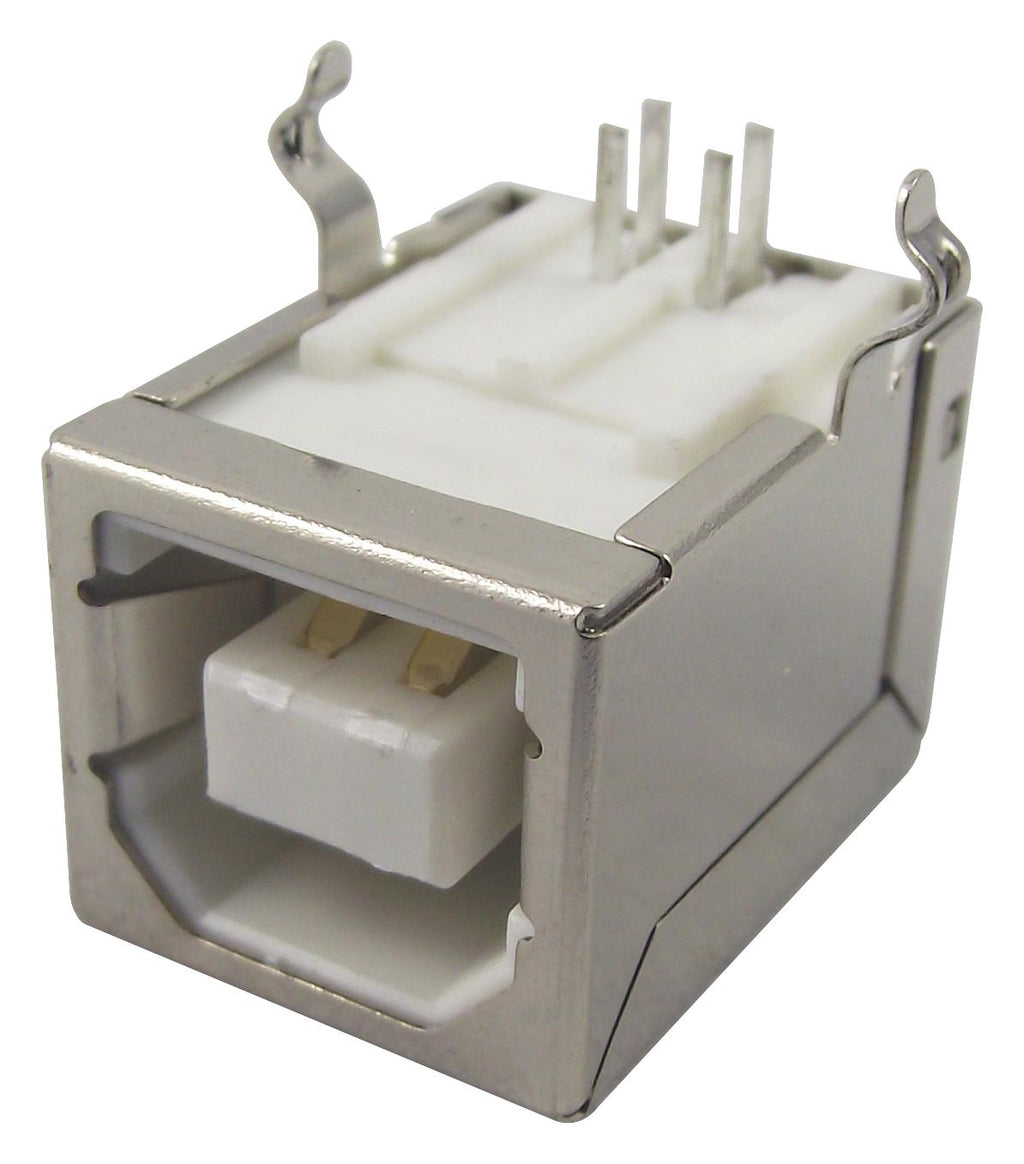

WURTH ELEKTRONIK - 61400416121 - USB Connector, USB Type B, USB 2.0, Receptacle, 4 Ways, Through Hole Mount, Right Angle
- USB Connector Type: USB Type B
- USB Standard: USB 2.0
- Gender: Receptacle
- No. of Positions: 4Ways
- Connector Mounting: Through Hole Mount
- Orientation: Right Angle
- Contact Material: Copper Alloy
- Contact Plating: Gold Plated Contacts
- Product Range: WR-COM Series
- SVHC: No SVHC (15-Jan-2019)
- Connector Mounting Orientation: PCB
- Connector Type: USB B
- Contact Resistance: 20mohm
- Contact Termination: Through Hole Right Angle
- Contact Termination Type: Through Hole
- Current Rating: 1A
- Flammability Rating: UL94V-0
- Insulation Resistance: 1000Mohm
- No. of Contacts: 4Contacts
- No. of Mating Cycles: 1500
- Operating Temperature Max: 105°C
- Operating Temperature Min: -40°C
- Termination Method: Solder
- Withstand Voltage: 750V
- Working Voltage: 30V
