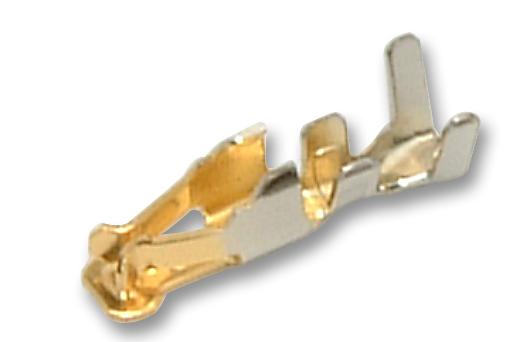

MOLEX - 50394-8100 - Contact, Milli-Grid™, Milli-Grid 50394, Socket, Crimp, 24 AWG, Gold Plated Contacts
- Product Range: Milli-Grid 50394 Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- Wire Size AWG Max: 24AWG
- Contact Plating: Gold Plated Contacts
- For Use With: Molex Milli-Grid 51110, 151100 Series Receptacle Housing Connectors
- Wire Size AWG Min: 30AWG
- Contact Material: Copper Alloy
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: CSA, UL
- Cable Diameter Max: 0.56mm
- Cable Diameter Min: 0.254mm
- Contact Resistance: 25mohm
- Contact Size: 24
- Contact Termination: Crimp
- Current Rating: 1A
- Gender: Receptacle
- Insulation Diameter Max: 1.4mm
- Material: Phosphor Bronze
- Voltage Rating VAC: 125V
- Wire Area Size Max: 0.22mm²
- Wire Area Size Min: 0.051mm²
- Wire Size: 24AWG
