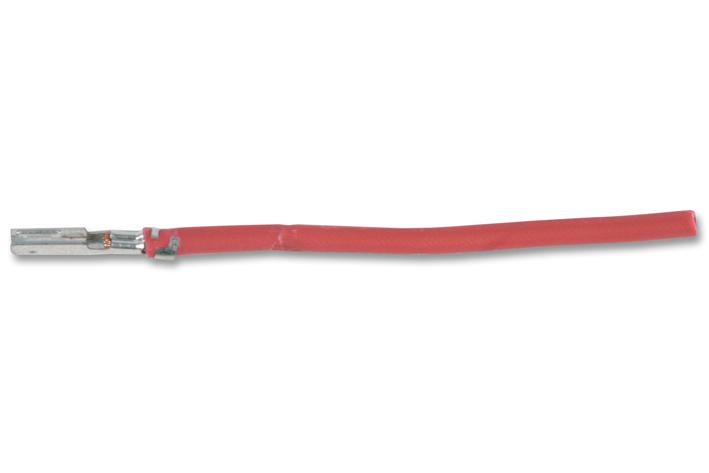

MOLEX - 19420-0002 - Automotive Connector Contact, MX150L 19420, Socket, Crimp, 18 AWG, 22 AWG
- Product Range: MX150L 19420 Series
- Contact Gender: Socket
- Contact Termination Type: Crimp
- Wire Size AWG Max: 18AWG
- Wire Size AWG Min: 22AWG
- For Use With: Molex MX150L 19418 Series Housing Connectors
- Contact Material: Copper Alloy
- Contact Plating: Tin
- SVHC: No SVHC (15-Jan-2019)
- Cable Diameter Max: 2.74mm
- Cable Diameter Min: 2.36mm
- Contact Plating: Tin Plated Contacts
- Contact Size: 18
- Contact Termination: Crimp
- Current Rating: 18A
- Gender: Receptacle
- No. of Mating Cycles: 25
- Operating Temperature Max: +125°C
- Operating Temperature Min: -55°C
- Voltage Rating VAC: 600V
- Wire Area Size Max: 0.75mm²
- Wire Area Size Min: 0.34mm²
- Wire Size: 18AWG
